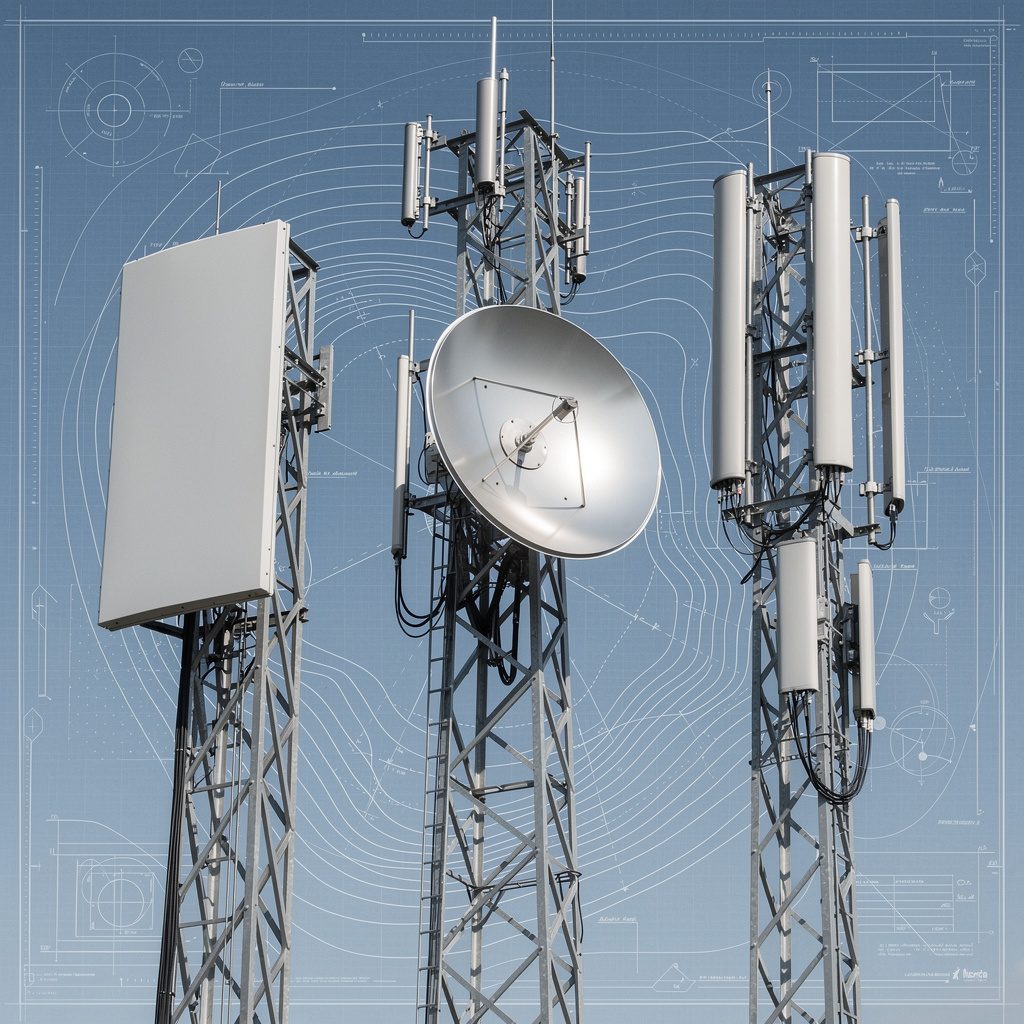

Choosing the Right Antenna Type for Your Industrial Project

Antenna selection determines whether a communication link works reliably or fails under load. Get the type wrong and you end up with dead zones, interference, or a system that can't survive a coastal winter. The right choice depends on frequency band, required coverage pattern, gain, and the environment the antenna has to survive.

Omnidirectional Antennas for Broad Coverage

Omnidirectional designs — dipoles, monopoles, and collinear arrays — radiate signal in a 360-degree horizontal pattern. Typical gain runs from 3 to 9 dBi, which trades range for wide coverage.

These antennas fit outdoor Wi-Fi access points, LPWAN gateways for IoT sensor networks, and marine VHF stations where vessels approach from any direction. Cellular carriers also use omni antennas at low-traffic rural sites where sector coverage isn't cost-effective.

Directional and Panel Antennas for Point-to-Point Links

Yagi, panel, and sector antennas concentrate energy into a defined beamwidth, usually between 30 and 120 degrees. Gain typically sits in the 12 to 18 dBi range, giving longer range at the cost of coverage angle.

Cellular base stations rely on three or six panel antennas per site to split coverage into sectors, each serving a slice of the surrounding area. The same design principle applies to private LTE deployments on factory campuses and to fixed wireless backhaul links connecting two buildings across a few kilometers.

Parabolic and Dish Antennas for Long-Range, High-Frequency Links

Parabolic reflectors focus microwave energy into a narrow beam, reaching gains of 30 to 45 dBi at frequencies from 6 GHz up to 40 GHz. Dish size scales with frequency and required range — a 1.2-meter dish might serve a 20 km backhaul hop, while a 3-meter dish supports satellite ground station work.

Telecom operators use parabolic links for microwave backhaul between towers where fiber isn't practical. VSAT terminals and weather radar installations depend on the same reflector geometry, just tuned to different frequency bands and duty cycles.

Specialized Antennas for Harsh Industrial Environments

Standard commercial antennas often can't survive offshore platforms, mining sites, or rail corridors. These settings call for antennas with sealed radomes, corrosion-resistant housings, and mounting hardware rated for vibration and wide temperature swings.

Oil and gas facilities frequently specify explosion-proof antenna enclosures certified for hazardous zones, since standard plastic housings aren't an option near flammable gas. Rail and mining operations need antennas that tolerate constant vibration and dust ingress without losing VSWR performance over years of service.

Matching Antenna Type to the Application

Start with the frequency band your system operates on — this narrows the physical size and design family before anything else. A 900 MHz LPWAN antenna and a 28 GHz mmWave antenna share almost nothing in construction.

Next, define the coverage pattern the deployment actually needs. A tower serving a full 360-degree area around a rural site needs an omni; a backhaul link between two fixed points needs a directional or parabolic design instead.

Then check the environment: outdoor exposure, salt air, vibration, temperature extremes, or hazardous zone certification requirements. This step often eliminates otherwise suitable antenna types simply because the housing can't meet the site's rating.

Finally, confirm mechanical constraints — tower loading limits, wind rating, mounting bracket compatibility — before finalizing the order. Getting this sequence right during the design phase avoids costly redesigns after the antenna is already fabricated and shipped to site.
